Radon Gas Mitigation Catalog.

Infiltec has helped do-it-yourselfers, home builders and others
to install effective radon gas reduction systems. Call us at (540) 943-2776 for help.

WARNING: This information is provided as a service to our potential customers, but Infiltec, Inc. can not be
responsible for its use or misuse. Infiltec Inc. does not provide radon mitigation or testing services.

rainbow line

| Home | New | Search | Links | Infiltec | Staff | Fun |
RADON CONTROL | About Radon | Radon FAQ | Pictures | Drawings | Fans | Water | Large Buildings | Radon Catalog |
AIR LEAKAGE | About Blower Doors | FAQ | Ducts | Fire | Large Buildings | Contractors | Blower Door Catalog |
OTHER INSTRUMENTS | Personal Seismometers | Infrasound Monitors |Micro-Manometers: Single Channel Dual Channel |
These prices and specifications were updated on May 31, 2023, and are subject to change without
notice. To order, go to our online order form or call us at (540) 943-2776.

|Radon Fan Selection Guide |Radon Fan Replacement Guide |Fan Performance Specifications |Fan Features |Fan Pictures |

CATALOG INDEX:

rainbow line

RADON GAS MITIGATION KITS

(Designed especially for home builders and home owners who are installing radon gas mitigation systems. Everything you need to install a standard active sub-slab depressurization (ASD) system is in one box, except for the PVC pipe and electrical hook up parts that can be obtained locally. See the Radon Fan Guide page to learn how to select your fan or for performance specifications, a replacement guide, and fan features.)
MODEL DESCRIPTION PRICE
GP501-Kits Infiltec GP501 radon gas mitigation kit:
includes RadonAway GP501 high suction radon fan, install kit with two
3
Infiltec GP501 radon gas mitigation kit:
includes RadonAway GP501 high suction radon fan, install kit with two
white 3 We use this HIGH SUCTION KIT for houses where there is sub-slab sand or clay, and we need the highest possible vacuum pressure at low air flows. We use these fans with either 3" or 4" PVC pipe ASD systems, and we provide kits that connect this fan with 3" openings to both pipe diameters. Free USA Ground Shipping except HI, AK, PR. Fan performance, Fan dimensions, Installation drawings, Installation instructions, System photos, Online Order or call (540) 943-2776.
KGP501-3x3BU Standard kit includes Radonaway GP501 fan with 5 year warranty, two black 3" by 3" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $276.16
KGP501-3x3BM Premium kit includes Radonaway GP501 fan with 5 year warranty, two black 3" by 3" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $Call
KGP501-3x3WU Standard kit includes Radonaway GP501 fan with 5 year warranty, two white 3" by 3" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $277.26
KGP501-3x3WM Premium kit includes Radonaway GP501 fan with 5 year warranty, two white 3" by 3" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $Call
KGP501-3x4BU Standard kit includes Radonaway GP501 fan with 5 year warranty, two black 3" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $280.33
KGP501-3x4BM Premium kit includes Radonaway GP501 fan with 5 year warranty, two black 3" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $Call
KGP501-3x4WU Standard kit includes Radonaway GP501 fan with 5 year warranty, two white 3" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $280.75
KGP501-3x4WM Premium kit includes Radonaway GP501 fan with 5 year warranty, two white 3" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $Call
GP301-Kits Infiltec GP301 radon gas mitigation kit:
includes RadonAway GP301 high suction radon fan, install kit with two
3
Infiltec GP301 radon gas mitigation kit:
includes RadonAway GP301 high suction radon fan, install kit with two
white 3 We use this MEDIUM SUCTION KIT for houses where there is no sub-slab gravel layer, and the sub-slab material is not very porous. We use these fans with either 3" or 4" PVC pipe ASD systems, and we provide kits that connect this fan with 3" openings to both pipe diameters. Free USA Ground Shipping except HI, AK, PR. Fan performance, Fan dimensions, Installation drawings, Installation instructions, System photos, Online Order or call (540) 943-2776.
KGP301-3x3BU Standard kit includes Radonaway GP301 fan with 5 year warranty, two black 3" by 3" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $233.38
KGP301-3x3BM Premium kit includes Radonaway GP301 fan with 5 year warranty, two black 3" by 3" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $Call
KGP301-3x3WU Standard kit includes Radonaway GP301 fan with 5 year warranty, two white 3" by 3" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $234.48
KGP301-3x3WM Premium kit includes Radonaway GP301 fan with 5 year warranty, two white 3" by 3" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $Call
KGP301-3x4BU Standard kit includes Radonaway GP301 fan with 5 year warranty, two black 3" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $237.55
KGP301-3x4BM Premium kit includes Radonaway GP301 fan with 5 year warranty, two black 3" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $Call
KGP301-3x4WU Standard kit includes Radonaway GP301 fan with 5 year warranty, two white 3" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $237.97
KGP301-3x4WM Premium kit includes Radonaway GP301 fan with 5 year warranty, two white 3" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. Order online or call (540) 943-2776. $Call
KRP140 Kits Infiltec KRP140 radon gas mitigation kit:
includes RadonAway RP140 high suction radon fan, install kit with two
black 4
Infiltec KRP140 radon gas mitigation kit:
includes RadonAway RP140 high suction radon fan, install kit with two
white 4 We use these quiet, efficient, long-lived, energy efficient LOWEST POWER KITS for new house construction, and for other houses where there is a porous sub-slab gravel layer. We use these fans with either 3" or 4" PVC pipe ASD systems, and we provide kits that connect this fan with 3" openings to both pipe diameters. Free USA Ground Shipping except HI, AK, PR. Fan performance, Installation drawings, System photos, Order.
KRP140-4x4BU Standard kit includes Radonaway RP140 fan with 5 year warranty, two black 4" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $181.91
KRP140-4x4BM Premium kit includes Radonaway RP140 fan with 5 year warranty, two black 4" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
KRP140-4x4WU Standard kit includes Radonaway RP140 fan with 5 year warranty, two white 4" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $182.64
KRP140-4x4WM Premium kit includes Radonaway RP140 fan with 5 year warranty, two white 4" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
KRP140-3x4BU Standard kit includes Radonaway RP140 fan with 5 year warranty, two black 3" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $183.34
KRP140-3x4BM Premium kit includes Radonaway RP140 fan with 5 year warranty, two black 3" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
KRP140-3x4WU Standard kit includes Radonaway RP140 fan with 5 year warranty, two white 3" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $183.96
KRP140-3x4WM Premium kit includes Radonaway RP140 fan with 5 year warranty, two white 3" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
KRP145 Kits Infiltec KRP145 radon gas mitigation kit:
includes RadonAway RP145 high suction radon fan, install kit with two
black 4
Infiltec KRP145 radon gas mitigation kit:
includes RadonAway RP145 high suction radon fan, install kit with two
white 4 We use these quiet, efficient, long-lived, energy efficient MEDIUM SUCTION KITS for new house construction, and for other houses where there is a porous sub-slab gravel layer. We use these fans with either 3" or 4" PVC pipe ASD systems, and we provide kits that connect this fan with 3" openings to both pipe diameters. Free USA Ground Shipping except HI, AK, PR. Fan performance, Installation drawings, System photos, Order.
KRP145-4x4BU Standard kit includes Radonaway RP145 fan with 5 year warranty, two black 4" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $184.93
KRP145-4x4BM Premium kit includes Radonaway RP145 fan with 5 year warranty, two black 4" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
KRP145-4x4WU Standard kit includes Radonaway RP145 fan with 5 year warranty, two white 4" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $185.66
KRP145-4x4WM Premium kit includes Radonaway RP145 fan with 5 year warranty, two white 4" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
KRP145-3x4BU Standard kit includes Radonaway RP145 fan with 5 year warranty, two black 3" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $186.36
KRP145-3x4BM Premium kit includes Radonaway RP145 fan with 5 year warranty, two black 3" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
KRP145-3x4WU Standard kit includes Radonaway RP145 fan with 5 year warranty, two white 3" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $186.78
KRP145-3x4WM Premium kit includes Radonaway RP145 fan with 5 year warranty, two white 3" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
KXP201 kits Infiltec XP201-4x4BM radon gas mitigation kit:
includes RadonAway XP201 medium suction radon fan, install kit with two
black 4
Infiltec XP201-4x4WU radon gas mitigation kit:
includes RadonAway XP201 medium suction radon fan, install kit with two
white 4 We use these MEDIUM SUCTION KITS for larger houses where we know there is a porous sub-slab gravel layer. Designed for use in either 3" or 4" diameter PVC pipe ASD systems. Free USA Ground Shipping except HI, AK, PR. Fan performance, Fan dimensions, Installation drawings, Installation instructions, System photos, Online Order or call (540) 943-2776.
KXP201-4x4BU Standard kit includes Radonaway XP201 fan with 5 year warranty, two black 4" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $186.28
KXP201-4x4BM Premium kit includes Radonaway XP201 fan with 5 year warranty, two black 4" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
KXP201-4x4WU Standard kit includes Radonaway XP201 fan with 5 year warranty, two white 4" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $187.00
KXP201-4x4WM Premium kit includes Radonaway XP201 fan with 5 year warranty, two white 4" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
KXP201-3x4BU Standard kit includes Radonaway XP201 fan with 5 year warranty, two black 3" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $187.71
KXP201-3x4BM Premium kit includes Radonaway XP201 fan with 5 year warranty, two black 3" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
KXP201-3x4WU Standard kit includes Radonaway XP201 fan with 5 year warranty, two white 3" by 4" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $188.13
KXP201-3x4WM Premium kit includes Radonaway XP201 fan with 5 year warranty, two white 3" by 4" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
RP265 Kits Infiltec KRP265 radon gas mitigation kit:
includes RadonAway RP265 high suction radon fan, install kit with two
black 4
Infiltec KRP265 radon gas mitigation kit:
includes RadonAway RP265 high suction radon fan, install kit with two
white 4 This kit combines high flow and high suction. We use it as a HIGH FLOW AND HIGH SUCTION KIT when the slab or soil is very leaky. We also use it for high suction in houses where there is no sub-slab gravel layer, and the sub-slab material is not very porous. It is a very versatile fan kit. These kits is designed to connect the 6" fan openings with 4" PVC pipe ASD systems. Free USA Ground Shipping except HI, AK, PR. Fan performance, Installation drawings, System photos, Order.
KRP265-4x6BU Standard kit includes Radonaway RP265 fan with 5 year warranty, two black 4" by 6" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $233.07
KRP265-4x6BM Premium kit includes Radonaway RP265 fan with 5 year warranty, two black 4" by 6" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
KRP265-4x6WU Standard kit includes Radonaway RP265 fan with 5 year warranty, two white 4" by 6" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $233.68
KRP265-4x6WM Premium kit includes Radonaway RP265 fan with 5 year warranty, two white 4" by 6" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
XR261 Kits Infiltec XP201-4x4BM radon gas mitigation kit:
includes RadonAway XP201 medium suction radon fan, install kit with two
black 4
Infiltec XP201-4x4WU radon gas mitigation kit:
includes RadonAway XP201 medium suction radon fan, install kit with two
white 4 This kit combines high flow and high suction. We use it as a HIGH FLOW AND MEDIUM SUCTION KIT when the slab or soil is very leaky. We also use it for good suction in houses where there is no sub-slab gravel layer, and the sub-slab material is not very porous. It is a very versatile fan kit. These kits is designed to connect the 6" fan openings with 4" PVC pipe ASD systems. Free USA Ground Shipping except HI, AK, PR. Fan performance, Installation drawings, System photos, Order.
KXR261-4x6BU Standard kit includes Radonaway XR261 fan with 5 year warranty, two black 4" by 6" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $203.44
KXR261-4x6BM Premium kit includes Radonaway XR261 fan with 5 year warranty, two black 4" by 6" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
KXR261-4x6WU Standard kit includes Radonaway XR261 fan with 5 year warranty, two white 4" by 6" pipe couplings, U-tube manometer vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $204.05
KXR261-4x6WM Premium kit includes Radonaway XR261 fan with 5 year warranty, two white 4" by 6" pipe couplings, Dwyer Magnehelic dial vacuum gauge with pipe mount, and radon system labels. FREE USA48 SHIP. order online or call (540) 943-2776. $Call
Check out our guides for radon fan: selection, performance, and replacement, or call the Infiltec factory at (540) 943-2776 if you need more help in selecting the right kit for your building. You can order online or call (540) 943-2776.

Click here for pictures and drawings of radon fan installations.
Click here for drawings of radon fan installations.

RADON GAS MITIGATION FANS

(For replacement or for new installations. All fans are UL and CSA listed for outside use. See our Radon Fan Guide page to learn how to select your fan or for performance specifications, a replacement guide, and fan features.)
MODEL DESCRIPTION PRICE
GP501 RadonAway GP501 radon fan: high suction RadonAway high-suction in-line fan: 60-140 Watts, 3" openings, 95 cfm@1" wc, 4.2" wc@0 cfm, 13 lbs, .125" white Norel housing, 12.5" diameter, 13" height, ETL tested to UL Standard 507 for indoor or outdoor use, made in U.S.A., and 5 year warranty. Free USA Ground Shipping except HI, AK, PR. Same day express shipping avalable for phone orders received before noon ET. Fan performance, Installation drawings, System photos, Order. $254.00
GP301 RadonAway GP301 radon fan: high suction RadonAway medium-suction in-line fan: 55-90 Watts, 3" openings, 92 cfm@1" wc, 2.6" wc@0 cfm, 13 lbs, .125" white Norel housing, 12.5" diameter, 13" height, ETL tested to UL Standard 507 for indoor or outdoor use, made in U.S.A., and 5 year warranty. Free USA Ground Shipping except HI, AK, PR. Same day express shipping avalable for phone orders received before noon ET. Fan performance, Installation drawings, System photos, Order. $201.51
RP140 RadonAway RP140 radon fan:
low power, replacement for Fantech R100, F100, FR100, Kanalflakt K4, Rosenberg R100, RadonAway XP101 fans RadonAway quietest and most energy efficient in-line fan: 14-20 Watts, 4" openings, 69 cfm@0.5" wc, 0.8" wc@0 cfm, 6 lbs, .125" white Norel housing, 8.5" diameter, 9.5" height, ETL tested to UL Standard 507 for indoor or outdoor use, made in U.S.A., and 5 year warranty. (drop-in replacement for Fantech R100, F100, FR100; RadonAway XP101; Kanalflakt K4; and Rosenberg R100 fans) Free USA Ground Shipping except HI, AK, PR. Same day express shipping avalable for phone orders received before noon ET. Fan performance, Installation drawings, System photos, Order. $144.15
RP145 RadonAway RP145 radon fan: medium suction,
replacement for Fantech HP190 and Kanalflakt K4XL fans RadonAway medium-power in-line fan: 37-71 Watts, 4" openings, 94 cfm@1" wc, 2.1" wc@0 cfm, ETL tested to UL Standard 507 for indoor or outdoor use, made in U.S.A., and 5 year warranty. Free USA Ground Shipping except HI, AK, PR. Same day express shipping avalable for phone orders received before noon ET. Fan performance, Installation drawings, System photos, Order. $149.90
XP201 RadonAway XP201 radon fan: Medium suction,
replacement for Fantech HP190, Kanalflakt K4XL, RadonAway RP145 fans RadonAway medium-power in-line fan: 45-65 Watts, 4" openings, 75 cfm@1" wc, 2.0" wc@0 cfm, 6 lbs, .125" white Norel housing, 8.5" diameter, 9.5" height, ETL tested to UL Standard 507 for indoor or outdoor use, made in U.S.A., and 5 year warranty. (drop-in replacement for Fantech FR125 and Kanalflakt T1 Turbo 5 and K4XL fans) Free USA Ground Shipping except HI, AK, PR. Same day express shipping avalable for phone orders received before noon ET. Fan performance, Installation drawings, System photos, Order. $146.45
RP265 RadonAway RP265 radon fan: high flow and high suction,
replacement for Fantech HP220 fans RadonAway high-flow in-line fan: 86-140 Watts, 6" openings, 207 cfm@1" wc, 2.5" wc@0 cfm, ETL tested to UL Standard 507 for indoor or outdoor use, made in U.S.A., and 5 year warranty. (drop-in replacement for Fantech R150, F150, FR150, R175, F175, FR174, HP220; Kanalflakt T2 Turbo 6, K6; and Rosenberg R150 fans) Free USA Ground Shipping except HI, AK, PR. Same day express shipping avalable for phone orders received before noon ET. Fan performance, Installation drawings, System photos., Order. $204.00
XR261 RadonAway XR261 radon fan: high flow,
replacement for Fantech R150, F150, FR150, Kanalflakt T2 Turbo 6, K6, Rosenberg R150, RadonAway RP260 fans RadonAway medium-flow in-line fan: 65-105 Watts, 6" openings, 115 cfm@1" wc, 1.9" wc@0 cfm, 6 lbs, .125" white Norel housing, 8.5" diameter, 9.5" height, ETL tested to UL Standard 507 for indoor or outdoor use, made in U.S.A., and 5 year warranty. (drop-in replacement for Fantech R150, F150, FR150; Kanalflakt T2 Turbo 6, K6; and Rosenberg R150 fans) Free USA Ground Shipping except HI, AK, PR. Same day express shipping avalable for phone orders received before noon ET. Fan performance, Installation drawings, System photos., Order. $161.67
HS2750 RadonAway HS2750 blower radon fan: high-suction, 4 blower settings,
built-in 40inch vacuum gauge, and wall-mount RadonAway very high-suction, wall-mount fan, with 4-speed switch box, 20inch maximum vacuum, and built-in 40inch vacuum gauge: made in U.S.A, 1 year warranty (additional 2 year warranty available with training). Fan performance, Installation drawings, System photos, Order. $2,242.50
HS5500 RadonAway HS5500 blower radon fan: high-suction, 4 blower settings,
built-in 40inch vacuum gauge, and wall-mount RadonAway very high-suction, wall-mount fan, with 4-speed switch box, 50inch maximum vacuum, and built-in 60inch vacuum gauge: made in U.S.A, 1 year warranty (additional 2 year warranty available with training). Fan performance, Installation drawings, System photos, Order. $2,467.50
Check our guides for fan selection, performance, replacement, and installation. or call us at (540) 943-2776 if need more help in selecting the right fan. We can supply almost all makes and models. To order, go to our online order form or call (540) 943-2776.

PVC PIPE/FAN COUPLINGS

(Flexible PVC material with stainless steel hose clamps)
MODEL DESCRIPTION PRICE
B156-33 Black pipe coupling for fan with 3" openings and 3" PVC pipe (GP201, GP301, GP401, GP501, GP500). 5 year warranty. Order. $10.12
W156-33 White pipe coupling, version of 3" to 3" coupling above. 5 year warranty. Order. $13.02
B156-43 Black pipe coupling for fan with 4" openings and 3" PVC pipe (RP140, XP101, XP151, XP201, F100, FR100 and R100). 5 year warranty. Order. $15.64
W156-43 White pipe coupling, version of 4" to 3" coupling above. 5 year warranty. Order. $17.25
B156-44 Black pipe coupling for fan with 4" openings and 4" PVC pipe (RP140, XP101, XP151, XP201, F100, FR100 and R100). 5 year warranty. Order. $14.42
W156-44 White pipe coupling, version of 4" to 4" coupling above. 5 year warranty. Order. $16.88
B106-43 Black pipe coupling for fan with 6" opening and 3" PVC pipe. (XR261, FR150, FR175, R150, K6 or T2) 5 year warranty. Order. $16.96
B106-44 Black pipe coupling for fan with 6" opening and 4" PVC pipe (XR261, FR150, FR175, R150, K6 or T2). 5 year warranty. Order. $16.70
W106-44 White pipe coupling, version of 6" to 4" coupling above. 5 year warranty. Order. $17.40
B156-66 Black pipe coupling for fan with 6" opening and 6" pipe (XR261, FR150, FR175, R150, K6 or T2). 5 year warranty. Order. $27.96
To order, go to our online order form or call (540) 943-2776.

GAUGES TO MONITOR RADON GAS SYSTEM PERFORMANCE

(These gauges show that the radon gas mitigation system is working properly)
MODEL DESCRIPTION PRICE
2005-M Dwyer 2005-M Magahelic gauge:
measures pressures from 0 to 5 inch wc, includes pipe mounting bracket Dwyer Magnahelic dial type vacuum gauge measures pressures from 0 to 5" wc, 5 year warranty. Includes pipe mounting bracket. Order. $158.10
VR4 Vacumeter U-tube type manometer:
measures pressures from -4 to +4 inch wc, screw mounting bracket Vacu-Ray Vacumeter U-tube type manometer uses the difference in the height of the red liquid columns to measure pressures from 0 to 4" wc, can be used with any radon gas mitigation fan. 5 year warranty. Includes radon label. Order. $15.72

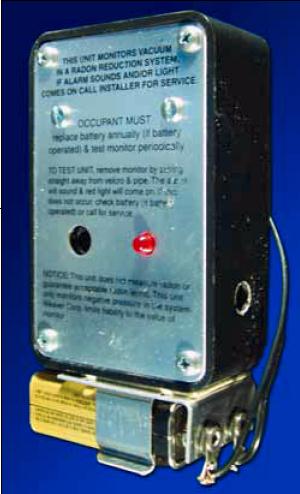

28001-2 28001-2 Vacuum Monitor/Alarm: electronic monitor activates light and audio when radon suction fails Vacuum Monitor/Alarm electronic light and audio when radon suction fails Detects when suction pressure inside pipe is below 0.25 inches water column (75 Pa), alerts with red light and high pitched audio alarm, three year warranty, powered from 110 VAC by wall socket plugin. Note: does NOT measure radon levels. Order. $98.52
To order, go to our online order form or call (540) 943-2776.

RADON GAS DIAGNOSTIC EQUIPMENT

MODEL DESCRIPTION PRICE
S220 Smoke Pen Kit Regin Smoke Pen Regin S220 Smoke Pen Kit: Smoke is a very sensitive method of finding air leaks in a radon gas control system. The Regin Smoke Pen uses wicks that are lit to produce a white streaming smoke, each wick last 30 minutes and can be relit, kit includes 6 wicks, pen holder for wicks, and instructions. Order. $CALL
S221 Smoke Pen Refills Regin S221 SmokePen Refills: 6 wicks to refill the S220 Regin Smoke Pen. Order. $CALL
DM1 Infiltec DM1 digital micro-manometer, resolution 0.001 inch wc or 0.1 Pascal,
accuracy 1 percent of measurement, range 3 inch wc or 750 Pascals Infiltec Digital Micro-Manometer: DM1 Specifications. The DM1 offers radon professionals the precision pressure measurements to diagnose mitigation system problems. Resolution of 0.1 Pa and 0.001" wc. Range -3.0 "wc (750 Pa) to +2.2 "wc (548 Pa). Accuracy 1% of reading or 1 digit. Keypad selection of units (Pa or "wc), time average (1 to 64 seconds), reset display zero, and on/off. Comes with calibration certificate, soft case, 9v battery, tubing & manual. 2 year warranty. Optional accessories include voltage or serial data output and battery eliminator. Order. $445
DM-A Optional DM1 voltage output jack and plug. 0-5 volt signal, with 2.5 volts indicating zero pressure. This signal is independent of DM1 keypad settings for time averaging, units, and zero. Order. $25
DM-S Optional DM1 serial output jack and cable with female D9 connector. 9600-8N1 pseudo RS232 ASCII records at 1 Hz with LF&CR termination, 32000 to -32000 data value range, resolution of 1/40 Pa, zero is set by keypad/display zero, keypad average has no effect. Order. $25
DM-P Optional battery eliminator to replace 9V battery power. AC input voltage: 90-264 VAC, AC frequency: 47-63 Hz. Plugs for USA, EU, UK, Australia. $35
DM1-U12-012 Infiltec DM1 micro-manometer with Onset U12-012 data logger image DM1 analog data logger records temperature, humidity, light levels, and DM1 differential pressure. This logger has a pressure resolution of 0.4 Pascal or 0.0018 "wc over the range -3.0 "wc (750 Pa) to +2.2 "wc (548 Pa). Time resolution can be set from 1 second to hours, and logging duration ranges from hours to days depending on time resolution and number of sensors recorded. Comes with DM1 , Onset U12-012 four channel data logger, downloadable user manual (PDF), DM1 calibration certificate, soft case for DM1, 9v battery, data cable, tubing, Onset USB cable, and Onset HOBOware Pro software. Click here for a sample data plot from this system. Order. CALL
DM4 Infiltec DM4 dual-channel, micro-manometer, auto-zero,
resolution 0.001 inch wec or 0.1 Pascal,
accuracy 1 percent of measurement,
range 3 inch wc or 750 Pascal Infiltec Dual Digital Micro-Manometer: DM4 Specifications. Resolution: 0.1 Pa and 0.001" wc. Range: -3.0 "wc (750 Pa) to +2.2 "wc (548 Pa). Accuracy: 1% of reading or 1 digit. Features multi-line LCD display of flow and pressure, dual pressure sensors for simultaneous measurements, auto pressure zero, key selectable average and units, Infiltec blower door/duct tester and Pitot functions. Comes with manual, calibration certificate, batteries, carrying case & tubing. Runs for at least 100 hours on six AA alkaline batteries. Optional serial output and battery eliminator available. 2 year warranty. NEW: digital display of building or duct leakage area in square inches/centimeters at any pressure, calculates Can't Reach 50 Pa flow, and calculates Minneapolis Model 3 blower door flows. $995
DM-S Optional DM4 serial output cable with female D9 connector. 9600-8N1 pseudo RS232 ASCII records at 1 Hz interval with LF&CR terminaton, 32000 to -32000 values, resolution of 1/40 Pa, comma separates two channel values, keypad average has no effect. $25
DM-P Optional DM4 battery eliminator to replace 9 volt battery power. AC input voltage: 90-264 VAC, AC frequency: 47-63 Hz. Plugs for USA, EU, UK, Australia. $35
166-6 Dwyer 6" Pitot Tube: use with micro-manometer for flow measurement in small pipes and ducts. Comes with instructions and air density calculator. 5 year warranty. Order. $Call
166-12 Dwyer 12" Pitot Tube: use with micro-manometer for flow measurement in larger pipes and ducts. Comes with instructions and air density calculator. 5 year warranty. Order. $Call
To order, go to our online order form or call (540) 943-2776.

OTHER MITIGATION EQUIPMENT

MODEL DESCRIPTION PRICE
PU-CAULK Polyurethane caulk, limestone grey color, 1 component, 10.3 oz tube, adheres well to concrete, gun grade, 25 linear feet of 1/4"x1/4" bead, cleans off hands and tools with mineral spirits, cures with atmospheric moisture. Order. $10.30
FSTOP-3 Firestop collar for 3" PVC pipe, intumescent material in metal collar, for penetrations of fire rated walls (like garage/house walls). Order. $67.15
FSTOP-4 Firestop collar for 4" PVC pipe, intumescent material in metal collar, for penetrations of fire rated walls (like garage/house walls). Order. $99.08
To order, go to our online order form or call (540) 943-2776.

SUMP COVERS AND DRAIN SEALS

RC420 Exhaust Cap: White PVC, low air restriction, fits 4" schedule 20 pipe. Order. $30.63
RC340 Exhaust Cap: White PVC, low air restriction, fits 3" schedule 40 pipe. Order. $27.63
RC440 Exhaust Cap: White PVC, low air restriction, fits 4" schedule 40 pipe. Order. $33.92
DC33 Drain Check Valve: White PVC flapper valve, connects to daylight end of 3" drain tile, allows water drainage when depressurization is working. Order. $66.22
DC34 Drain Check Valve: White PVC flapper valve, connects to daylight end of 4" drain tile, allows water drainage when depressurization is working. Order. $83.22
To order, go to our online order form or call (540) 943-2776.

INFILTEC SERVICES

SERVICE DESCRIPTION PRICE
Instrument
Calibration
Blower Door and Micro-Manometer Calibration. Infiltec maintains a blower door test lab where we can recalibrate almost any blower door or micro-manometer. Call our lab at (540) 943-2776. $Call
Instrument
Repair
Blower Door and Micro-Manometer Repair. The Infiltec lab can repair most makes and models of blower doors and micro-manometers. Call our lab at (540) 943-2776. $Call
Custom
Test
Equipment
Infiltec has developed custom air leakage and pressure measurement systems for problems ranging from concrete blocks (leaks from 0.001 to 1 sq inch) to 2,000,000 cu ft buildings (leaks of 10 to 100 sq ft). Call Infiltec at (540)-943-2776 $Call
To order, go to our online order form or call (540) 943-2776.

rainbow line

Product Warranty

All Infiltec products are sold with a 30 day money-back guarantee of satisfaction, and a 2 year warranty covering parts and labor. Other manufacturer's products are covered by their manufacturer's warranties.

rainbow line

Ordering Information:

To order radon gas mitigation supplies, go to our order online form or call (540) 943-2776 weekdays from 7 AM to 4 PM Eastern Time, or email: Infiltec Factory . Orders placed by noon can be shipped that day. Infiltec accepts Mastercard, Visa, Amex or COD, and payment terms are net 15 to customers with established credit. The Infiltec factory hours are 8 am to 4 pm, Eastern time. The minimum order is $25, the minimum shipping charge is $8, and the COD charge is $8.50.

Infiltec
108 South Delphine Avenue
Waynesboro, VA 22980
Phone: (540) 943-2776
Fax: (540) 932-3025
E-mail: Infiltec Factory
Hours: Weekdays from 7 AM to 4 PM Eastern Time

rainbow line

| Home | New | Search | Links | Infiltec | Staff | Fun |
RADON CONTROL | About Radon | Radon FAQ | Pictures | Drawings | Fans | Water | Large Buildings | Radon Catalog |
AIR LEAKAGE | About Blower Doors | FAQ | Ducts | Fire | Large Buildings | Contractors | Blower Door Catalog |
OTHER INSTRUMENTS | Personal Seismometers | Infrasound Monitors |Micro-Manometers: Single Channel Dual Channel |

This page copyright © 1996-2023 by Infiltec Inc., all rights reserved. It was last updated on May 31, 2023

Infiltec small logo
Return to
the Infiltec
Home Page.
